Automatic laser welding machine for stainless steel processing

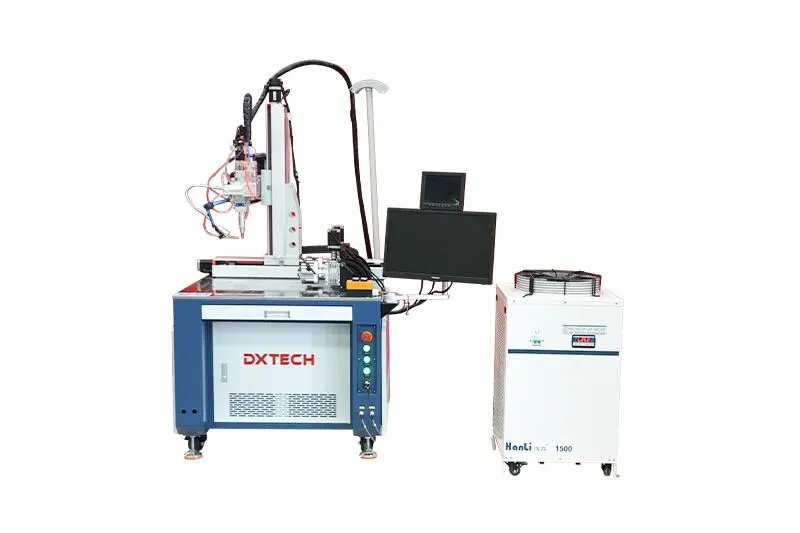

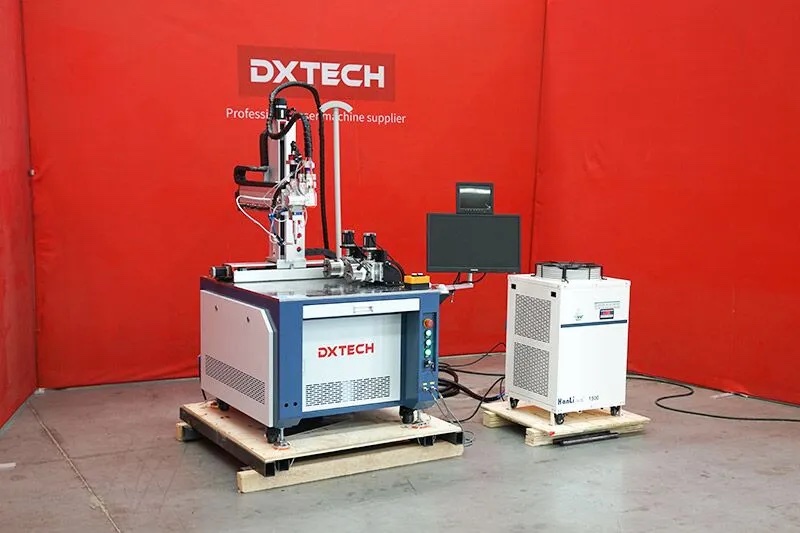

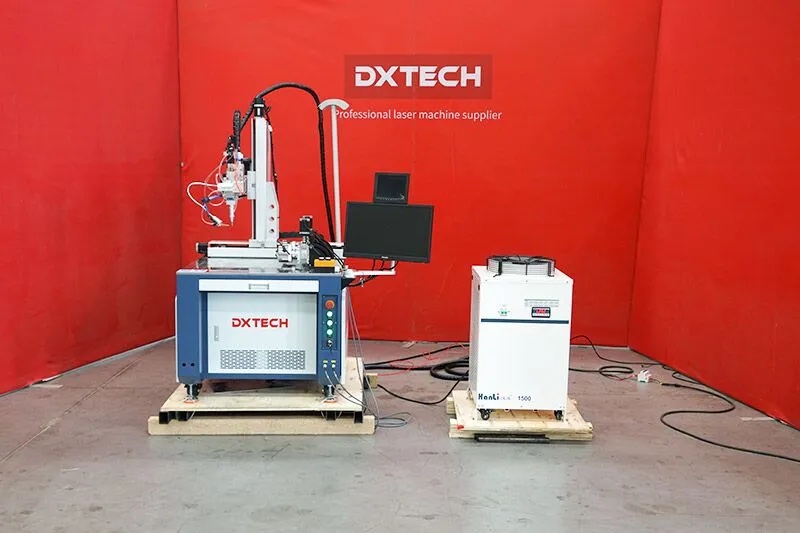

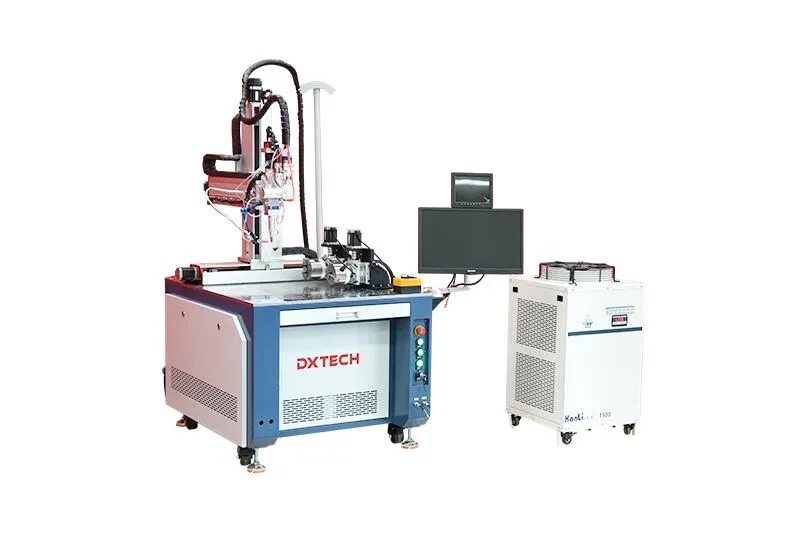

DXTECH automatic laser welding machine is a high-precision welding equipment that adopts new welding technology for welding. Fast welding speed, high precision, good beam pattern. It combines the advantages of high energy density and concentration of laser technology with an automatic control system to achieve high-quality welding on various materials. The welding machine has an automatic focus function, which can solve the welding of uneven end faces, and cooperate with the cycle machine to realize automatic welding of irregular products. It is composed of laser light source, optical system, automatic control system, workbench, chiller and other components.

  • With auto focus function
  • Fast welding speed, high precision, good beam pattern.

This welding machine has the function of auto focus, which can solve the welding of uneven end faces, and cooperate with the circulator to realize automatic welding of irregular products. This type of welding machine is widely used for precision welding of optical communication devices, medical, electronics, batteries, fiber optic coupling devices, kinescope electron guns, metal parts, mobile phone vibration motors, clock precision parts, automotive steel sheets, etc.

Advantages

  1. With auto-focus and rotary welding functions, it can realise product welding of any shape in 3D space.
  2. It can realise spot welding, butt welding, lap welding and sealing welding of thin-walled materials and precision parts.
  3. The rotating shaft can be customised to meet the welding requirements of different customers.
  4. Using high-power laser power supply, it can meet 24-hour mass production and is suitable for large-scale production enterprises or users.
  5. Compared with traditional MIG and TIG welding methods, it provides faster welding speed, while reducing heat-affected zone, minimising material deformation and stress.
  6. It adopts a special laser welding control system, which has the characteristics of stable performance and simple operation.

Welding Parameters

Model DXTECH automatic laser welding machine
Power range 1500W / 2000W / 3000W
Body size 880×1100×750mm
Operating mode Continuous
Weight 470kg
X, Y, Z stroke 500×300×400mm
Cooling method Water-cooled
Functions Seam welding, T-welding, overlap welding, edge welding, rotary welding
