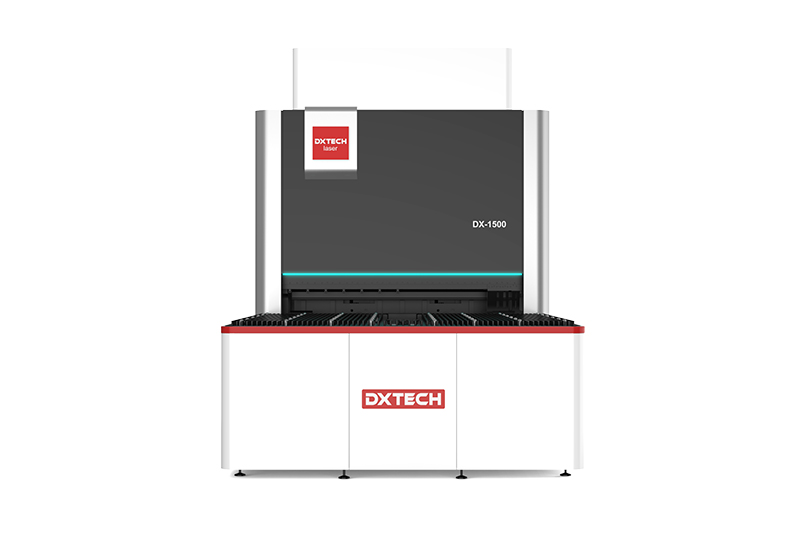

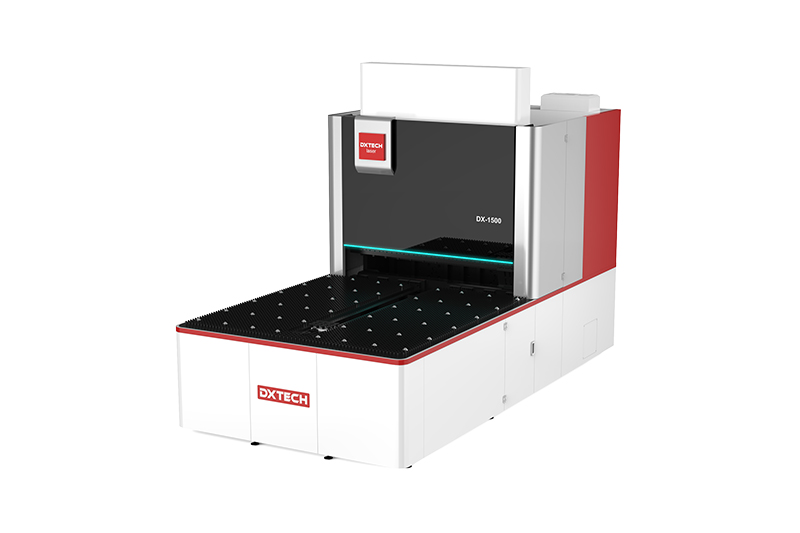

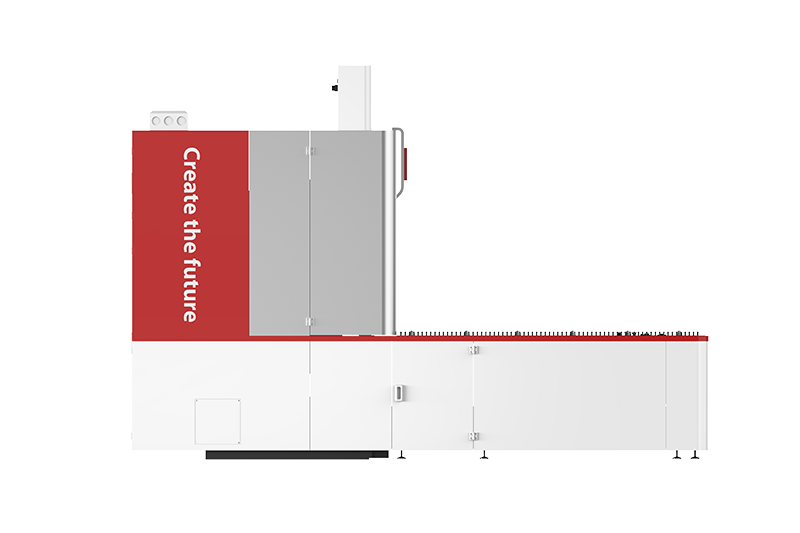

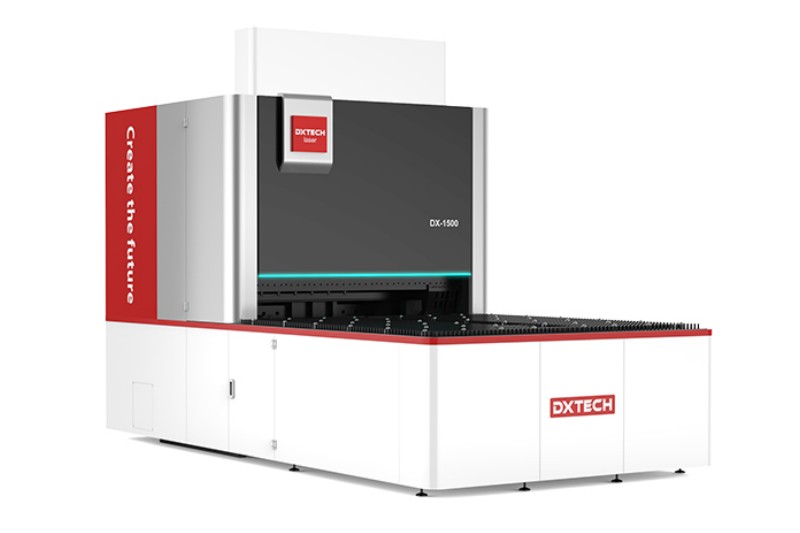

DX-C1500 Suction Cup Automatic Panel Bending Machine for Sale

The suction-cup automatic panel bender can bend workpieces in large quantities and is mainly used for processing thin metals and small parts. The error is minimal and the consistency is high. Greatly save manpower and improve production efficiency. The bending speed is 3 times that of the CNC bending machine, reaching 0.5 seconds/time. Full servo control, product accuracy is maintained within 3 seconds. This product is a new generation of fully automatic multilateral bending center that accelerates industrial transformation and upgrading and promotes cost reduction and efficiency improvement.

1. The Main Features of Suction-Cup Automatic Panel Bender

  1. The working speed is three times that of ordinary CNC bending machines, saving production and labour costs.
  2. It has good wear resistance and long service life. The whole machine can be bent more than 1 million times without frequent replacement of upper and lower bending tools.
  3. It has automatic bending function and can bend right angles, acute angles, obtuse angles, arcs, edge presses, hollow squares, closed shapes and other complex shapes. No hand bending required. Up and down and horizontal bending can also be achieved.
  4. The suction cup loading system uses vacuum suction cups to absorb the plates and rotate them within 360°. Its two guide rulers enable precise positioning and automatic adjustment of the bending angle.

2. Main Technical Parameters of Suction-Cup Automatic Panel Bender

Model DX-C1500
1 Bending Length: 1500mm
2 Plate Length: 1600mm
3 Plate Width: 1250mm
4 Bending Height: 170mm (Can be customized 300mm)
5 Min Forming Size (Four sides): 310×230mm
6 Min Forming: 230mm
7 Min Radius: 1.2mm
8 Bending Speed: 0.2s/bend
9 Opening Height: 170mm
10 Angle: 0–360°
11 Material Thickness:
Aluminum plate: 2.0mm
Cold plate: 1.5mm
Stainless steel: 1.0mm
12 Numerical System: Star300-LGx
13 Axis: Standard configuration 10
14 Machine Dimension: Length 3700mm, Width 1800mm, Height 2500mm
15 Machine Weight: 10000kg

3. Application Industries and Samples of Suction-Cup Automatic Panel Bender

The suction-cup automatic panel bender has been widely used in aerospace, automotive electronics, plate processing, distribution boxes, steel structures, elevators, home decoration, cabinets and kitchenware, etc.

4. Working Environment and Conditions of Use

This machine is suitable for any material preparation workshop, and its conditions are:

  1. Power supply voltage: three-phase 380V AC ±10%
    Frequency: 50Hz ±1Hz
  2. Operating environment temperature: -20℃ to +50℃
    Humidity: 20–85% (no condensation)
    Altitude: <1000m
  3. Protection level: electrical control cabinet IP40, control box IP45

This machine has no “three wastes” discharged, and the noise limit meets the requirements of JB9969-1999.

5. Installation, Test, Acceptance and After Service

  1. Seller should inform the buyer to inspect the machine in our factory after the machine is finished.
  2. Seller should supply corresponding files and foundation drawings within 7 days after confirming the order.
  3. If buyer needs the installation and test by the seller, then the charges in China will be taken by the seller. Charges outside of China, such as tickets and hotels, should be covered by the buyer.
