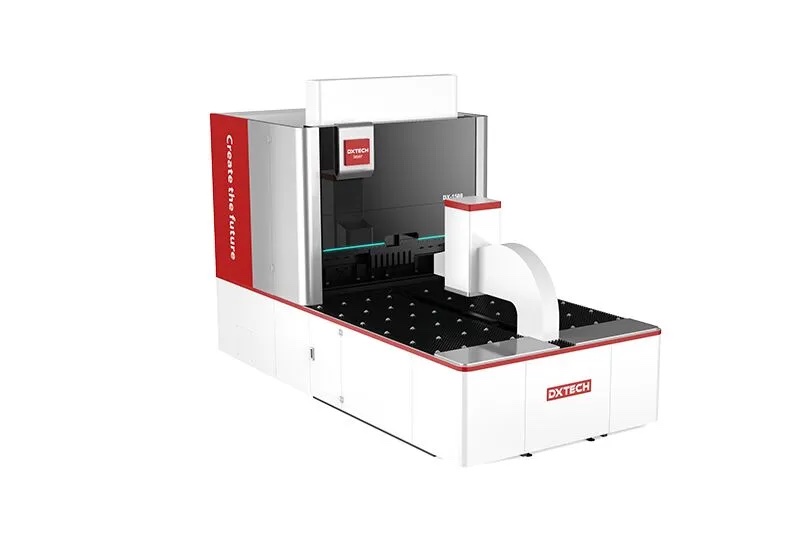

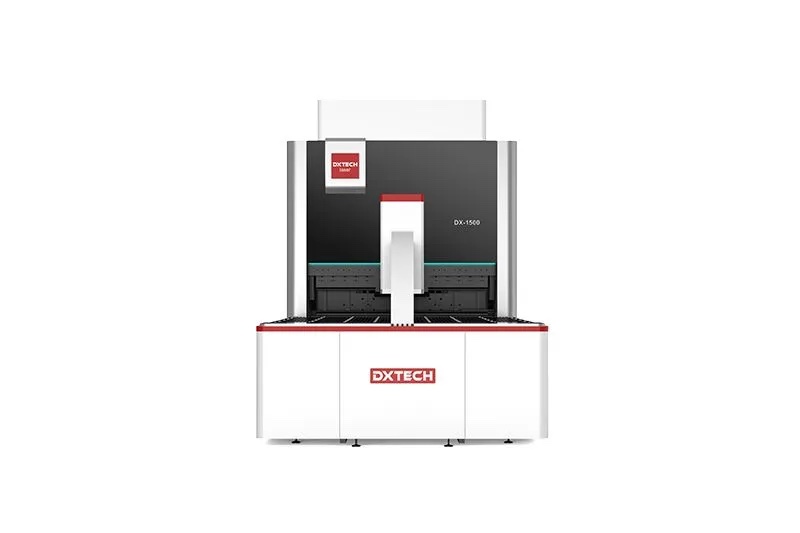

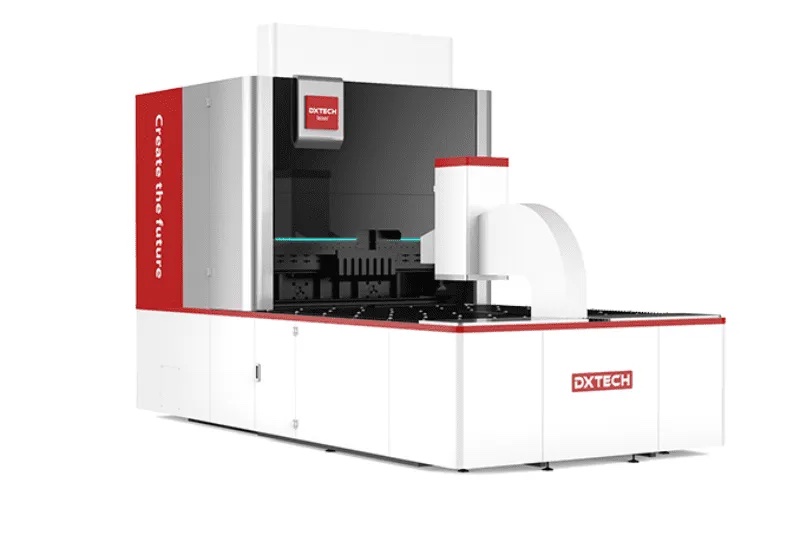

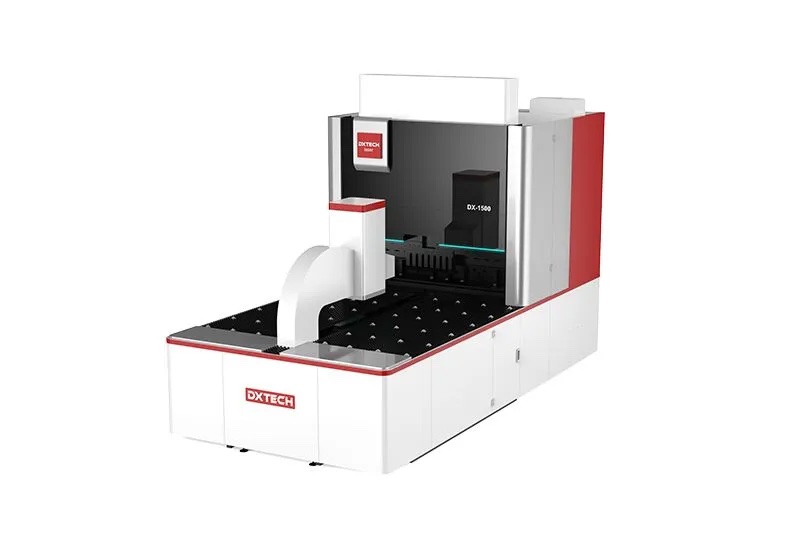

DX-C2500 Pressure Arm Type Automatic Plate Bending Center

The pressure arm type automatic plate bending center can bend workpieces in large quantities and is mainly used for processing thick metal and large parts. Through multi-axis parallel linkage, the dependence on molds and labor is solved, greatly saving manpower and costs, and improving production efficiency. This product is a new generation of fully automatic multilateral bending center that accelerates industrial transformation and upgrading and promotes cost reduction and efficiency improvement.

1. The Main Features of the Machine of Pressure Arm Type Automatic Plate Bending Center

  1. Universal bending tool, available in various machine sizes and functions.
  2. Good wear resistance and long service life. The whole machine can be bent more than 1 million times without frequent replacement of upper and lower bending tools.
  3. High degree of automation and high production efficiency. It greatly saves manpower and production costs. The continuous bending speed is 3 times that of CNC bending machines, reaching 0.2s/time.
  4. Using Star300-LGx intelligent CNC system, it can realize graphic visual programming and two-dimensional drawing process programming at the same time.
  5. It can easily realize basic bending styles such as right angles, acute angles, and obtuse angles. It can also realize arc type, dead edge type, return type, closed type and other complex sheet metal bending requirements.

2. Main Technical Parameters of Pressure Arm Type Automatic Plate Bending Center

Model DX-C2500
1 Bending Length: 2500mm
2 Plate Length: 2050mm
3 Plate Width: 1250mm
4 Bending Height: 175mm (Can be customized 320mm)
5 Min Forming Size (Four sides): 300×200mm
6 Min Forming: 200mm
7 Min Radius: 1.2mm
8 Bending Speed: 0.5s/bend
9 Opening Height: 180mm
10 Angle: 0–360°
11 Material Thickness:
Aluminum plate: 2.0mm
Cold plate: 1.5mm
Stainless steel: 1.2mm
12 Numerical System: Star300-LGx
13 Axis: Standard configuration 13    15/18 optional
14 Machine Dimension: Length 3700mm, Width 1800mm, Height 2500mm
15 Machine Weight: 10000kg

3. Application Industries and Samples of Pressure Arm Type Automatic Plate Bending Center

The pressure arm type automatic plate bending center has been widely used in aerospace, automotive electronics, plate processing, distribution boxes, steel structures, elevators, home decoration, cabinets and kitchenware, etc.

4. Working Environment and Conditions of Use

This machine is suitable for any material preparation workshop, and its conditions are:

  1. Power supply voltage: three-phase 380V AC ±10%
    Frequency: 50Hz ±1Hz
  2. Operating environment temperature: -20℃ to +50℃
    Humidity: 20–85% (no condensation)
    Altitude: <1000m
  3. Protection level: electrical control cabinet IP40, control box IP45

This machine has no “three wastes” discharged, and the noise limit meets the requirements of JB9969-1999.

5. Installation, Test, Acceptance and After Service

  1. Seller should inform the buyer to inspect the machine in our factory after the machine is finished.
  2. Seller should supply corresponding files and foundation drawings within 7 days after confirming the order.
  3. If buyer needs the installation and test by the seller, then the charges in China will be taken by the seller. Charges outside of China, such as tickets and hotels, should be covered by the buyer.
