DX-TP10S Twisted Axis CNC Press Brake Machine

DX-TP10S hydraulic bending machine accessories adopt TP10S CNC system, which has high labor productivity and high precision in plate bending work. This machine uses upper and lower molds of different shapes, with the best parameter ratio and core material configuration. It has stable performance, more convenient operation, and can bend workpieces of various complex shapes. Compared with traditional bending machines, hydraulic bending machines have better bending accuracy and efficiency, and can increase bending time by 30%.

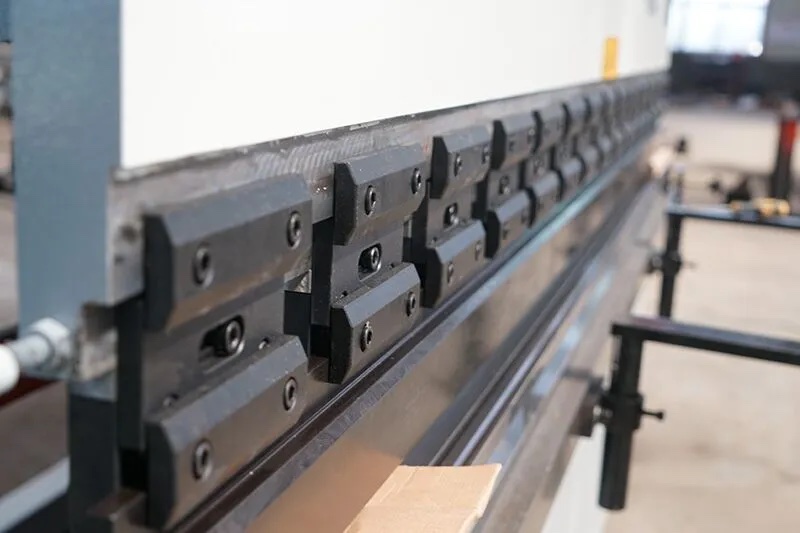

  • The slider can bend the plate into shape in one go, and after multiple bends, workpieces with more complex shapes can be obtained.
  • When equipped with corresponding equipment, it can also be used for punching holes.

1. The Main Features of the Machine

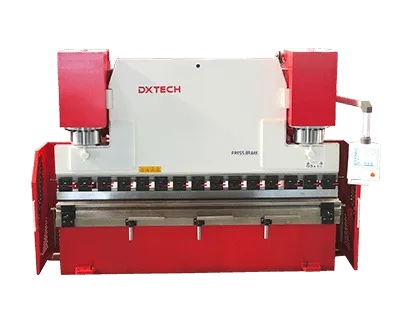

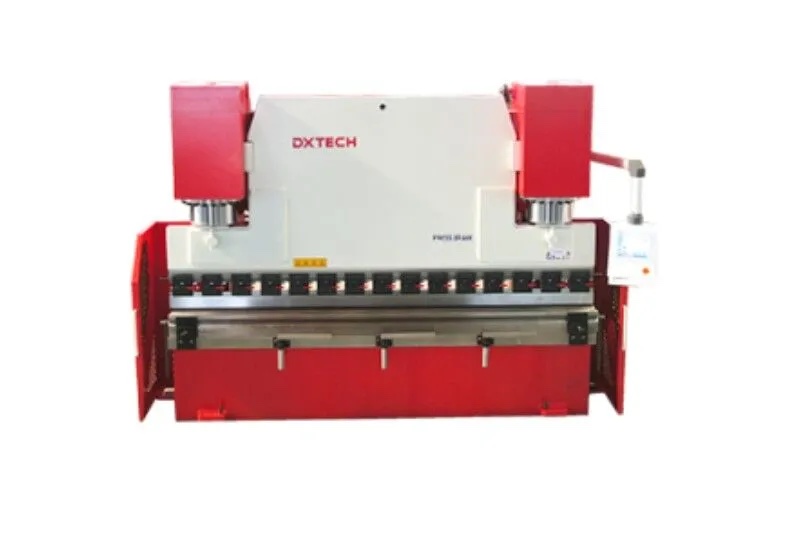

  • The model is advanced and beautiful. The two oil cylinders are fixed on the left and right wall panels. The force state of the whole machine is reasonable and the rigidity is sufficient.
  • Good synchronous performance, strong anti-eccentric load capability, and easy debugging.
  • It has the best parameter ratio and core material configuration, stable performance, more convenient operation, and can bend workpieces of various complex shapes.
  • Compared with the traditional bending machine, the hydraulic bending machine has better bending accuracy and efficiency and can increase the bending time by 30%.

2. The Main Components and Structure of the Machine

2.1 TP10S CNC System

  • The TP10S controller system includes 2 servo motors, a set of handles, a screen, a Schneider electric box, and a foot switch set, with economical and easy-to-use CNC high-level performance.
  • The efficient algorithm optimises the bending cycle, reduces the setting time of working steps, and improves the overall efficiency of the bending process, especially in batch processing scenarios.
  • Strong anti-interference ability, high reliability, and high accuracy. Accommodates 2D and 3D graphics editing.

2.2 Electrical Parts

  • The equipment adopts Schneider components imported from France, known for their stability, durability, and long service life.
  • The machine is equipped with Eston’s original self-adaptive electrical box assembly, which has strong anti-interference ability and stable electrical performance.

2.3 Backgauge

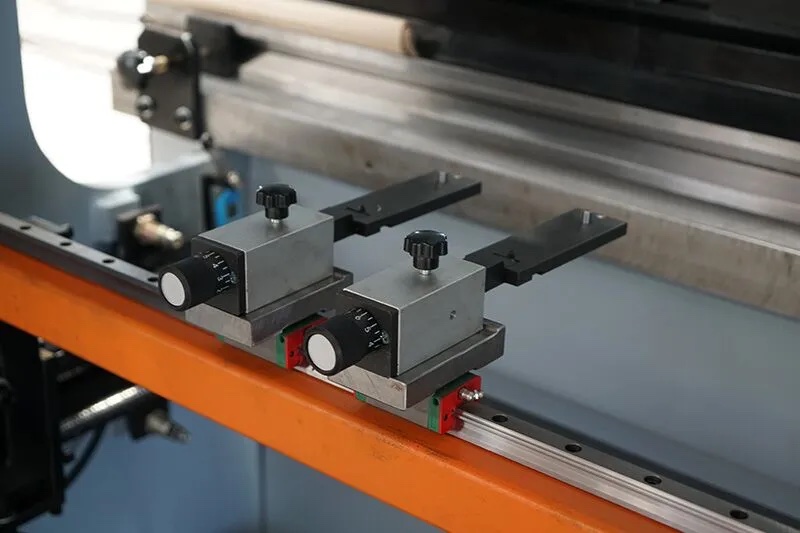

  • To ensure the excellent motion accuracy of the X-axis, imported ball screws and linear guides are used to replace the traditional screw rods, which improves the accuracy and consistency of our manufacturing process.
  • The rear stop uses a synchronous pulley mechanism controlled by a servo motor instead of a stepper motor. This upgrade provides greater control and accuracy to our operations.
  • The entire back gauge system is tempered at high temperatures to eliminate internal stress, enhance metal plasticity and toughness, and prevent loss of precision caused by frame deformation.

2.4 German OKDO IPM Series

  • With axial and radial pressure compensation design, it can maintain high volumetric efficiency even at low speed and low viscosity.
  • Ultra-low noise, using high-strength cast iron and unique internal muffler design.
  • Extremely low flow and pressure pulsation, and can maintain stable flow and pressure output even at low speeds.

3. Main Technical Parameters

Model 63T/1600 100T/2500 125T/3200 200T/2500 200T/4000
CNC System TP10S TP10S TP10S TP10S TP10S
Number Of Control Axes 3 axes (Y1, Y2, X) 3 axes (Y1, Y2, X) 3+1 axes (Y1, Y2, X+V) 3 axes (Y1, Y2, X) 3 axes (Y1, Y2, X)
Nominal Force 630kN 1000kN 1250kN 2000kN 2000kN
Table Length 1600mm 2500mm 3200mm 2500mm 4000mm
Distance Between Columns 1180mm 2040mm 2710mm 1900mm 3100mm
Throat Depth 320mm 400mm 350mm 400mm 400mm
Slider Stroke 170mm 160mm 160mm 200mm 200mm
Opening Height 400mm 450mm 420mm 480mm 460mm
Main Motor Power 5.5KW 7.5KW 7.5KW 15KW 15KW
Control Accuracy ±0.01mm ±0.01mm ±0.01mm ±0.01mm ±0.01mm
Electrical Components Schneider Schneider Schneider Schneider Schneider
Ball Screw TBI TBI TBI TBI TBI
Back Gauge Guide Rail HIWIN HIWIN HIWIN HIWIN HIWIN

4. Working Environment and Conditions of Use

  • Ambient temperature: -10 to +40℃ (the temperature of the fuel tank shall not be lower than +10℃)
  • Relative humidity: ≤80% (+25℃)
  • Power source: 3-phase 380V±10% 50Hz (or customised)
  • This machine has no “three wastes” discharged, and the noise limit meets the requirements of JB9969-1999.

5. Installation, Test, Acceptance and After Service

  1. Seller should inform the buyer to inspect the machine in our factory after the machine is finished.
  2. Seller should supply corresponding files and foundation drawings in 7 days after confirming the order.
  3. If buyer needs installation and testing by the seller, the charges in China will be covered by the seller. Charges outside China, such as tickets and hotels, are the buyer’s responsibility.
