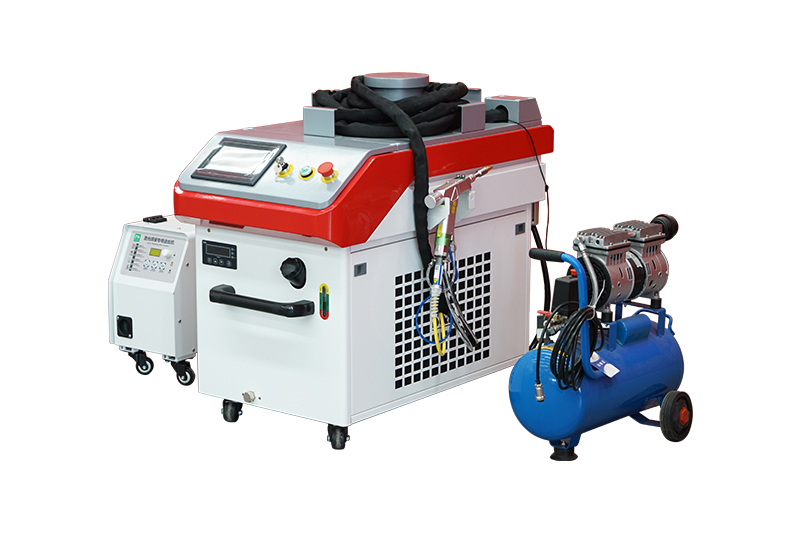

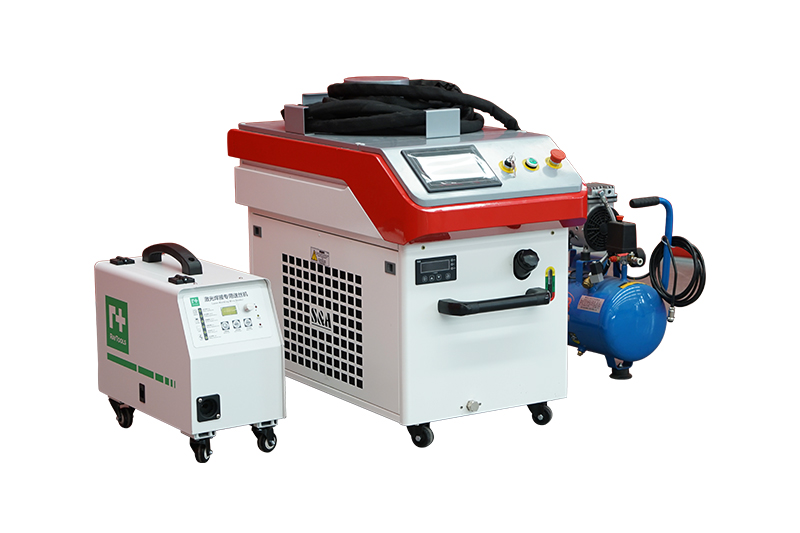

MCCW Series Handheld “4 in 1” Mini Fiber Laser Cleaning Machine
This machine Non-contact cleaning, no damage to the part; Accurate cleaning, realize precise position, precise size selective cleaning; No chemical cleaning liquid, no consumables, safe and environmentally friendly;Simple operation, power-on, can be handled or cooperated with robot; The cleaning efficiency is very high, saving time; Laser cleaning system is stable, almost no repair
Machine Application
- Multifunction fiber laser machine, can weld, clean, welding seam cleaning and cut metallic materials;

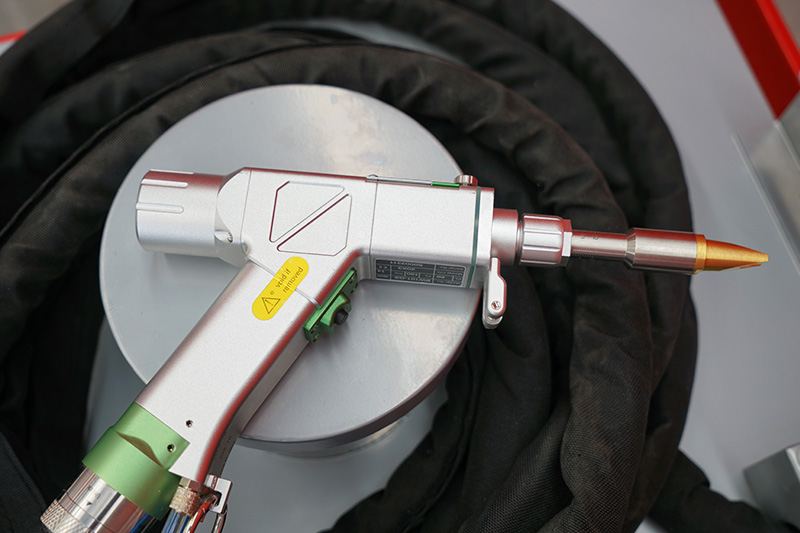

- Handheld type with longer holder cable length;
- Welding function conversion cleaning function, just replace the focusing lens and laser head;
- Small machine body, can move easily. It is very convenient.
It is widely used in the industries such as advertising signs, hardware products, auto parts, craft gift etc. It can be used to weld the metallic materials, like carbon steel, stainless steel, titanium, aluminum, etc.
Technical Parameters
| Model | MCCW 10/15/20 |
| Machine power | 1000w / 1500w / 2000w / 3000w |
| Laser type | Continuous |
| Laser source | Fiber laser |
| Cleaning width | 10–200mm |
| Laser wavelength | 1080±5nm |
| Pulse width | 0.05–0.6 |
| Out power stability | <2% |
| Weld thickness | 2–2.5mm / 2–2.5mm / 3–4mm / 5–6mm |
| Power consumption | 7KW / 8.2KW / 9.8KW / 13.9KW |
| Fiber optical length | 10m |
| Model | Regular / mini |
| Machine size | 700×1500×1300mm / 1500×750×850mm |
| Machine weight | 240KGS / 160KGS |
