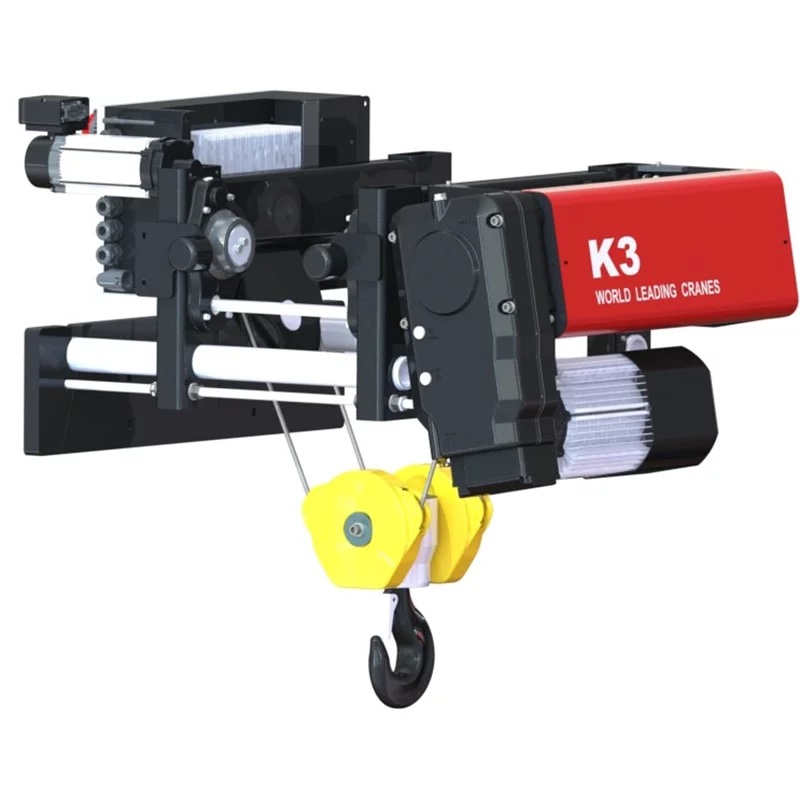

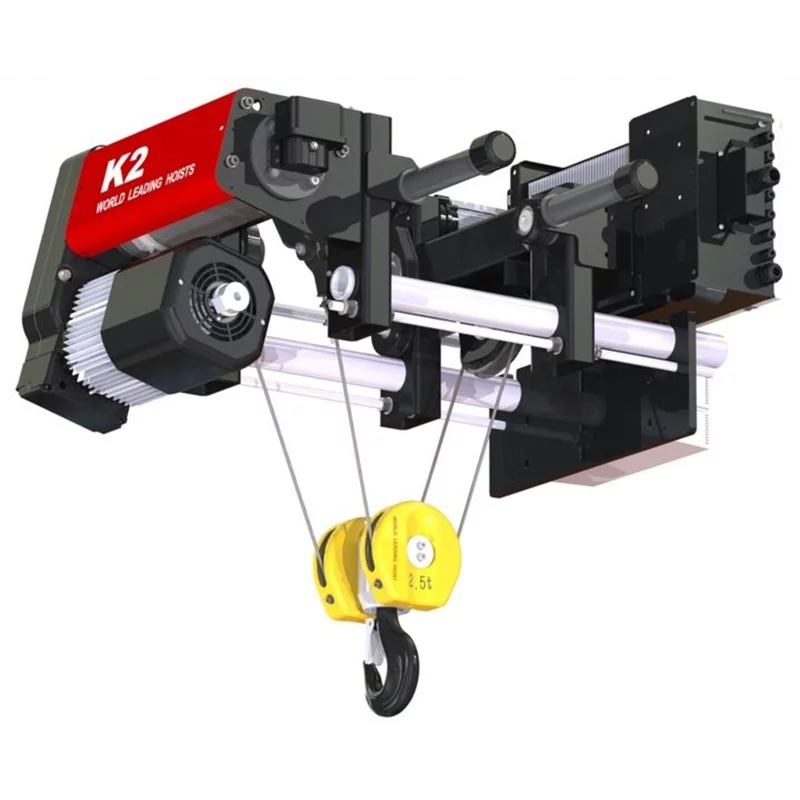

Wire Rope Hoists
WORLDHOISTS wire rope hoists are available in K Series and H Series, distinguished by their low headroom design and high energy efficiency. These models support special working conditions and come equipped with intelligent functions, delivering safe, reliable lifting solutions tailored to a wide range of needs.
- WORLDHOISTS wire rope hoists are small in size, light in weight and adaptable to various plant conditions, effectively reducing construction costs. The energy-efficient design, combined with maintenance-free features, significantly reduces energy consumption and daily maintenance needs, substantially lowering operational costs.
- Whether in extreme environments (hot or cold) or special conditions (explosion-proof, metallurgy, clean rooms, nuclear power, etc.), our hoists operate stably, meeting diverse requirements. Supporting multiple intelligent functions, they provide efficient and reliable lifting solutions.
- As a leading industry brand, we deliver over 10,000 units annually and have an extensive partner network across more than 50 countries and regions worldwide
Technical Parameters
| Item | Specification |
|---|---|
| Lifting Capacity | 0.8 t – 80 t |
| Lifting Height | Max. 90m |
| Duty Class | M4 – M6 |
| Protection Rating | IP55 (Standard) |
| Insulation Class | H Class (Standard) |
| Motor Duty Cycle | 60%ED |
| Wire Rope Strength | 2160N/mm² High-Strength Galvanized Wire Rope |
| Hook | DIN 34CrMo4 T-Class Hook |
| Traversing Motor | Stepless Inverter |
| Hoist Motor | Standard Two-Speed, Optional Stepless |
| Reducer | Hardened Gear Reducer |
| Brake | Electromagnetic Disk Brake |
| Temperature | Standard Temperature: -5°C to +40°C |
| Paint | Epoxy Zinc-Rich Paint, Standard Paint Thickness: 120µm |
| Environment | Standard Indoor (Optional Based on Actual Requirements) |
| Safety Features | Overheat Protection, Overload Protection, Fall Protection |
| Smart Functions | Sway Control, Inching, Micro-Speed, Bluetooth, Crane APP (Optional Based on Actual Requirements) |
